Eaton (CEAG)
Explosion-Proof Lighting and Controls for Hazardous Areas
Eaton (CEAG) offers a comprehensive range of innovative and reliable industrial and explosion-proof hazardous area lighting, electrical control equipment and related products. The advanced technology, global certifications and unmatched selection of proven solutions combine to deliver superior illumination, energy efficiency, reliability and safety in the most demanding of environments.
MacLean Electrical is an authorised stockist and distributor and represents Eaton (CEAG) lighting products, control stations, junction boxes, plugs, sockets and accessories from our locations in the UK.
Browse MacLean International Group Technical Library
Browse our technical library for product details, specifications and images. If you can't find what you're looking for, don't hesitate to call us for a chat! In our technical library, you'll also find an enquiry basket. Simply add the products you're interested in to the basket, fill out the form and we'll promptly send you a quote.
CEAG Linear Lighting
eLLK Non-Metallic LED Linear Fixtures
With its heavy-duty, non-metallic construction, the eLLK LED linear can withstand the toughest of physical and environmental demands. It is ideal for applications in areas where dust, dirt, vapour, gas, smoke, fumes, moisture corrosive or wet conditions exist. This flexible light fitting works well where low mounting height, immediate illumination and even light distribution is required, such as in loading areas, tunnels and stairways.
Product Features
- ATEX and IECEx certified
- Zone 1, 2, 21 and 22 hazardous areas
- 100,000 hours of service
- -25 °C to +55 °C operating temperature range
- Corrosion-resistant
- 20% energy savings compared to fluorescent
- Environmentally friendly
- Heat sinks provide longer life and improved output
- Shock and vibration resistant
- Immediate start with instant full illumination
- Reduced glare and multi-shadowing with special reflector design
- Available as emergency luminaire

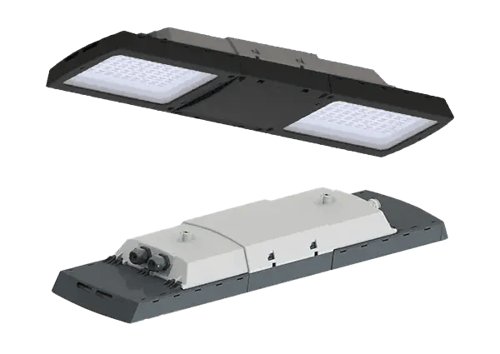

ExLin Linear LED
With longer life, improved efficiency and superior performance, the Eaton/CEAG ExLin linear LED is approved for use in Zone 1 and Zone 21 hazardous areas. With a competitive payback versus fluorescent fixtures, this LED linear is designed with safety, reliability and efficiency in mind.
The ExLin linear delivers long service life in harsh and hazardous environments, combining state-of-the-art LED technology with optimised thermal management, time-tested drivers and field-proven GRP enclosures. Five lumen output ranges from 2,910 to 11,230 replace 2x18W, 2x36W and 2x58W fluorescent fixtures. Custom standard, wide and narrow optics optimize light distribution for specific applications.
ExLin Standard Product Features
- Rated life of 100,000 hours at 25 °C provides years of low maintenance operation
- Luminous efficacy: 130 lm/W (up to 40% energy efficiency compared to traditional fluorescent fixtures)
- Operating temperature range: -40 °C to +55 °C (dependent on model)
- Optics and lens options: standard, narrow, wide beam
- Lens glass options: clear, diffused (frosted)
- Optional laminated glass lens with external plastic foil prevents glass from falling - ideal for safe use in critical processes in Food & Beverage, Chemical and Pharmaceutical applications
- Low-profile and lightweight design with drop-in mounting compatibility to eLLK fluorescent fixtures
- Available with V-CG-S emergency lighting technology to connect to a central emergency lighting system

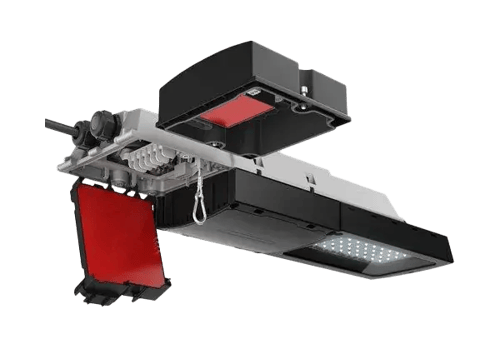

ExLin NE+ Emergency Luminaire Product Features
- Available in 2 models: 3L (2910 lm) and 5L (5610 lm)
- Emergency lighting mode can be set locally to deliver 2000 lumens for 1.5 hours or 1000 lumens for 3 hours
- LiFePO4 battery delivers faster and more stable charging capabilities, superior performance and lifetime
- No change in light distribution pattern while in emergency mode
- Integrated software automatically performs prescribed function tests and quarterly partial duty-cycle test in accordance with DIN EN 50172 and DIN V VDE 0108-100-1
- 2-diode LED display clearly shows charge and battery status
- Hot Swap technology allows for easy exchange of the battery in Ex areas without disconnecting the power supply
VLL Linear LED
Approved for Zone 1 and 21 hazardous areas, the Eaton (CEAG) VLL linear LED fixture is designed for long-life reliability and performance and is suited to indoor and outdoor areas where impact, corrosion, high vibration or adverse weather conditions exist. These linear fittings also allow for seamless retrofitting of existing fluorescents.
Product Features
- Luminous efficacy: up to 130~ lm/W
- Reduced energy consumption provides cost-saving opportunities
- Versatile solution with 3 lumen packages available: 3100 lm, 6400 lm, 7400 lm
- IP66 rated
- Emergency versions available
- Operating temperature range: -40 °C to +55 °C (3100 lm, 6400 lm models), -40 °C to +50 °C (7400 lm model)
NHLL Zone 2 Linear LED
Approved for Zone 2 and 22 hazardous areas, Eaton (CEAG) NHLL linear LED fixtures are manufactured with a corrosion-resistant aluminium housing and high impact-resistant polycarbonate cover, providing extreme durability and reliability.
An extended operating temperature range allows NHLL LED linears to be used in a wide range of ambient conditions where explosive atmospheres exist. Superior performance of this fixture, together with long service life, low maintenance requirements and low energy consumption, offers a competitive payback compared to traditional fluorescent fixtures.
Product Features
- T6 temperature rating
- Operating temperature range: -40 ˚C to +50/55 ˚C (normal applications); -25 °C to +50/55 °C (emergency lighting applications)
- IP66 rated ingress protection
- Available for 3000K, 4000K, 5000K and 6500K colour temperatures
- Anti-shock and vibration-proof
- Mercury-free
- Instant ON without time delay
CEAG Control Stations
GHG Ex and Ex-e Explosion-Protected Control Stations
Designed to allow optimum cable connection with low side walls, Eaton (CEAG) Ex and Ex-e control stations are available with a variety of components, such as signal lamps, pushbuttons and switches, which can be quickly snapped onto a rail inside the enclosure. The enclosure rails are designed to facilitate easy cable-entry feeding and to prevent the built-in components from being twisted out of place.
These explosion-protected control stations are internationally approved and can be used and operated reliably even under the most challenging and adverse conditions.
Product Features
- Suitable for Zone 1 and 21 areas
- Enclosure materials: impact-resistant thermoplastic, 316L stainless steel
- Captive, corrosion-resistant cover screws
- Components available: pushbuttons, signal lamps, control switches, contact blocks, terminal blocks, potentiometers, actuators
- Available with a maximum of two entries – top and bottom for conduit fittings or cable glands
- Meets worldwide electrical codes and standards
- Single product line that can be used in applications around the world
- Used widely in offshore industry and especially where severe mechanical, chemical and climatic conditions exist
- Suited to clean-room environments (316L version)
- Applications include remote motor control, visual indication of equipment performance, on-off control of circuits and circuit selection
- Suitable for universal mounting plates on pipes, conduit, wall or channels
CEAG Enclosures and Junction Boxes
Eaton (CEAG) offers top-quality enclosures to meet a wide variety of requirements. The range includes a full line of commercial, industrial and classified enclosure solutions ideally suited for oil and gas, mining, water and wastewater, OEM panel shop applications and more.
Ex-CELL Stainless Steel or Painted Steel Enclosures
A globally certified enclosure and termination solution for Type 3S and 4X applications, Ex-CELL enclosures are manufactured to meet the most demanding industrial and hazardous area environmental applications. Ex-CELL enclosures are also widely used for instrumentation and electrical applications across the globe.
This family of enclosures offers the largest size range, with flexible options available. Over 100 standard sizes are available in stainless steel and painted steel, featuring unique design features, precision manufacturing and the highest quality materials.
Product Features
- ATEX and IECEx certified
- Ex-e ia IIC, T6, T5
- 2G Ex-eb IIC Gb or 2D Ex-tb IIIC Db
- Option of 0, 1, 2, 3 or 4 gland plates
- Single door enclosures up to 1600 x 1200 x 400mm
- IP66 rated
- TR-CU and EAC certified
- Available assembled as custom-configured and certified terminal boxes
- Available with custom entries, cable glands, plugs with built-in terminals (Ex-e and Ex-i) and other equipment
- Full assembly capabilities from MacLean Electrical – visit our Workshop page for more information on assembled enclosures: MacLean Approved Workshops
N-TB Stainless Steel or Sheet Steel Enclosures
N-TB is the premium line of stainless-steel enclosures from Eaton (CEAG). Available in 316L stainless steel and painted mild steel, N-TB enclosures accommodate rail-mounted terminals or other electrical components in corrosive and environmentally challenging outdoor applications.
Available in 28 basic sizes in 5 standard depths to optimize accommodation of rail-mounted terminals or components, the N-TB range has a fully removable hinged cover and concealed hinges providing a 180° opening.
Product Features
- ATEX and IECEx certified
- 2G Ex-e IIC Gb or 2D Ex-tb IIIC Db
- Option of 0, 1, 2, 3 or 4 gland plates
- Lip on upstand increases gasket contact area, ensuring high degree of ingress protection
- Internal/external ground stud
- 40mm wide mounting lugs for assembly on standard frames
- Available assembled as custom-configured and certified terminal boxes
- Available with custom entries, cable glands, plugs with built-in terminals (Ex-e and Ex-i) and other equipment
- Full assembly capabilities from MacLean Electrical – visit our Workshop page for more information on assembled enclosures: MacLean Approved Workshops
S-TB Stainless Steel or Sheet Steel Enclosures
S-TB enclosures from Eaton (CEAG) feature a compact and simple design. Available in 13 sizes with standard finishes of 316L stainless steel or painted steel and IP66 rating, these enclosures are suitable for all environmental conditions. Stainless steel versions are recommended in marine environments or other corrosive applications.
Product Features
- Enclosure materials: polished 316L stainless steel (standard), polished 304 stainless steel, painted mild steel (optional)
- Gaskets: foam-in-place silicone (standard), cut silicone (with gland plates, optional)
- Designed to meet the requirement for distribution and lighting junction boxes
- IECEx and ATEX certified
- 2G Ex-eb IIC Gb or 2D Ex-tb IIIC Db
- TR-CU and EAC certified
- Available assembled as custom-configured and certified terminal boxes
- Available with custom entries, cable glands, plugs with built-in terminals (Ex-e and Ex-i) and other equipment
- Full assembly capabilities from MacLean Electrical – visit our Workshop page for more information on assembled enclosures: MacLean Approved Workshops
Other Eaton (CEAG) Products
MacLean Electrical is pleased to offer additional top-tier product categories from Eaton (CEAG):
- Plugs
- Sockets
- Couplers
- Isolators
- Safety switches
- Distribution boards
- Cable glands
MacLean is also proud to offer products from these additional Eaton brands:
- MEDC
- MTL
- Bussmann
- Raxton
- FHF
Technical Product Library
Industrial and Hazardous Area Solutions from Eaton (CEAG)
Explore MacLean Electrical’s technical library to access up-to-date product information and view the wider Eaton (CEAG) range.
About Eaton (CEAG)
Powering Business Worldwide
CEAG are part of the Eaton group of companies. Eaton is renowned as a global power management company conducting business in more than 175 countries. Dedicated to manufacturing excellence, Eaton provide innovative products across a broad range.
